Matteo Bucci

ASP Net Core Logging with Azure

May 4, 2024

I’ve recently started my journey on ASP.NET and .NET development. Coming from a Node development environment, I was quite pleased to get to know the countless tools and middleware supported by the platform and the DI framework itself. The flexibility provided is great but this also means that configuration can be at times obscure and getting to understand what happens under the hood can be sometimes tricky.

One area it is taking time to grasp is how logging works and what are the actors involved. While it’s easy to get up and running, having a complete, production environment area can be tricky.

As a learner, the first thing I need to understand is at what level the concept I’m learning apply:

  • At language level, provided by C#
  • At the development platform level, provided by .NET
  • At framework level, provided by ASP.NET Core

All of these are mature component of a flourish ecosystem, and most of the times what you need is to look at specific middleware provided by the framework itself.

At lower level it’s possible to integrate logging and tracing libraries, but today we want to find the easiest and most complete solution to configure.

What do we want to achieve?

We need:

  • Logging, Tracing and Events support
  • Integration with Application Insights
  • Integration with the local development enviroment (Visual Studio)
  • A simple way to divert our logs into other platform easily

Requests should be tracked automatically, as well as dependencies call and custom logs. We also want clean logs that are not polluted by useless info.

The setup

The application is a very simple AspNetCore application. The app is composed by the startup class (Program.cs), a controller, a service and that’s it.

The controller and the service are injected by an ILogger class and some logs are written whenever a request is made. Whenever the controller is invoked, a warning message is issued while whenever the service is invoked a log message is issued.

1using MatteoWebApplication.Services;
2using Microsoft.AspNetCore.Mvc;
3

4namespace MatteoWebApplication.Controllers
5{
6    [ApiController]
7    [Route("[controller]")]
8    public class WeatherForecastController : ControllerBase
9    {
10

11        private readonly ILogger<WeatherForecastController> _logger;
12        private readonly WeatherForecastService _service;
13

14        public WeatherForecastController(ILogger<WeatherForecastController> logger, WeatherForecastService service)
15        {
16            _logger = logger;
17            _service = service;
18        }
19

20        [HttpGet(Name = "GetWeatherForecast")]
21        public IEnumerable<WeatherForecast> Get()
22        {
23            _logger.LogWarning(_logger.ToString());
24            return _service.GetWeatherForecast();
25        }
26    }
27}

Let’s install the dependencies (from this tutorial)

Microsoft.ApplicationInsights.AspNetCore

And include this line to enable the sending of the logs

1builder.Services.AddApplicationInsightsTelemetry();

What happens now?

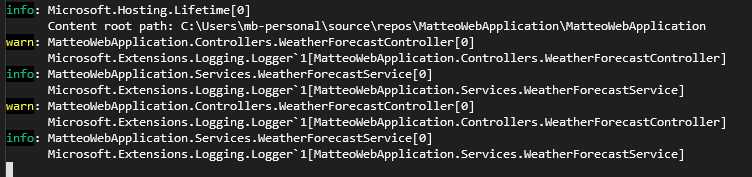

Terminal looks clear but it lacks info about the requests

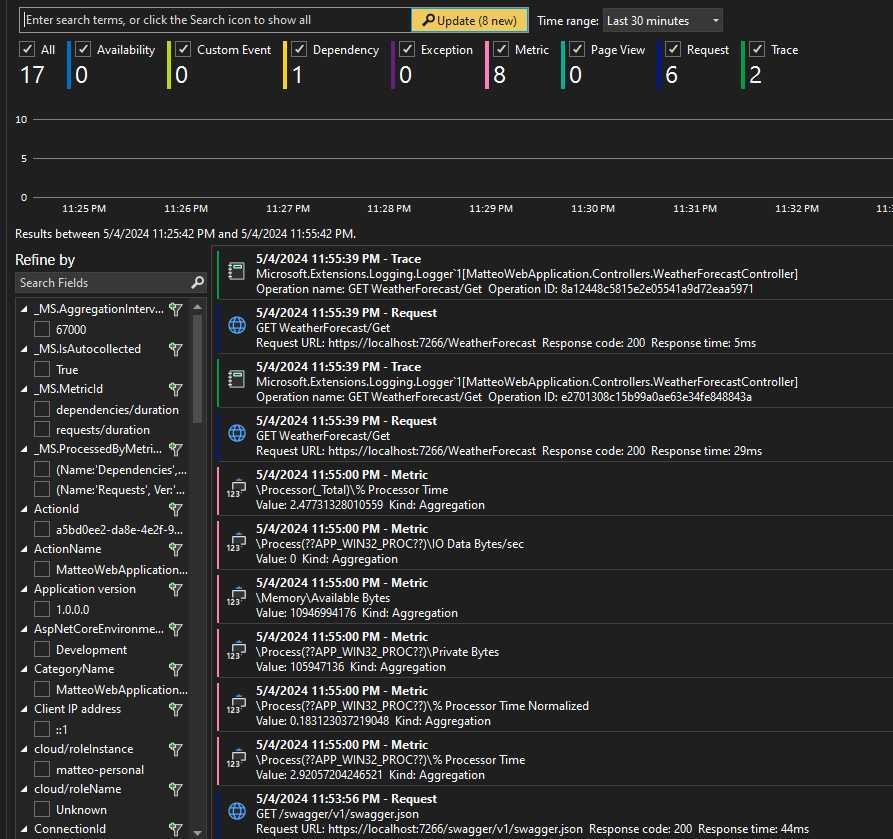

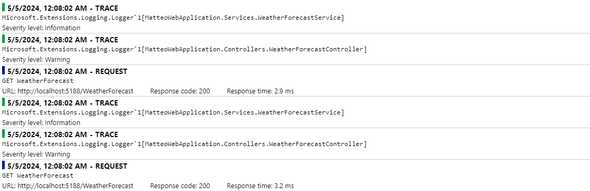

Visual studio shows requests, traces and metrics


AppInsights on Azure shows nothing. Why? Because we forgot to set the environment variable!

Let’s set:

1APPLICATIONINSIGHTS_CONNECTION_STRING

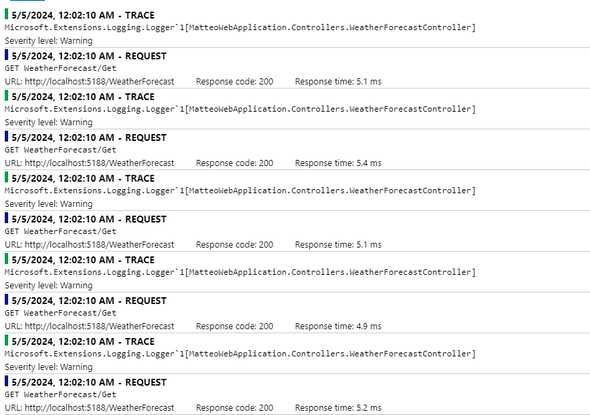

Ok, now we see it:

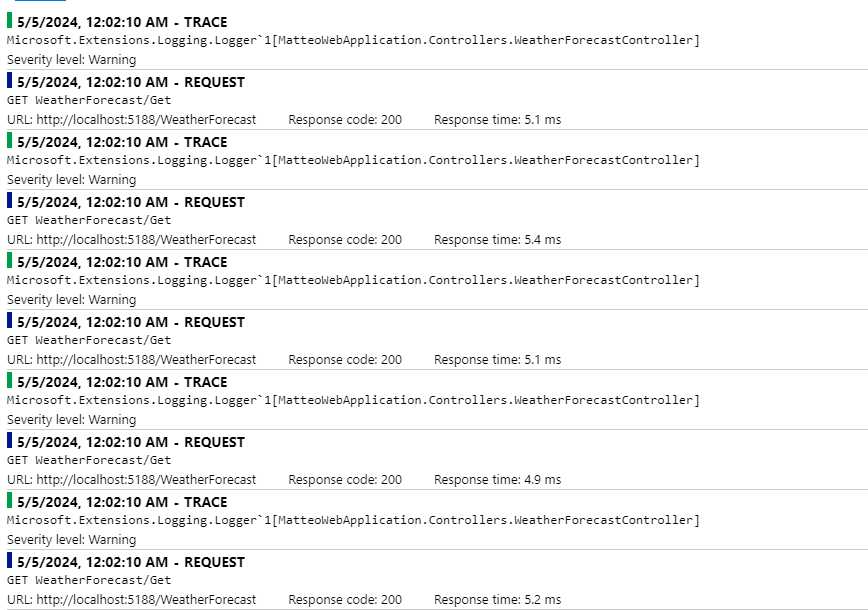

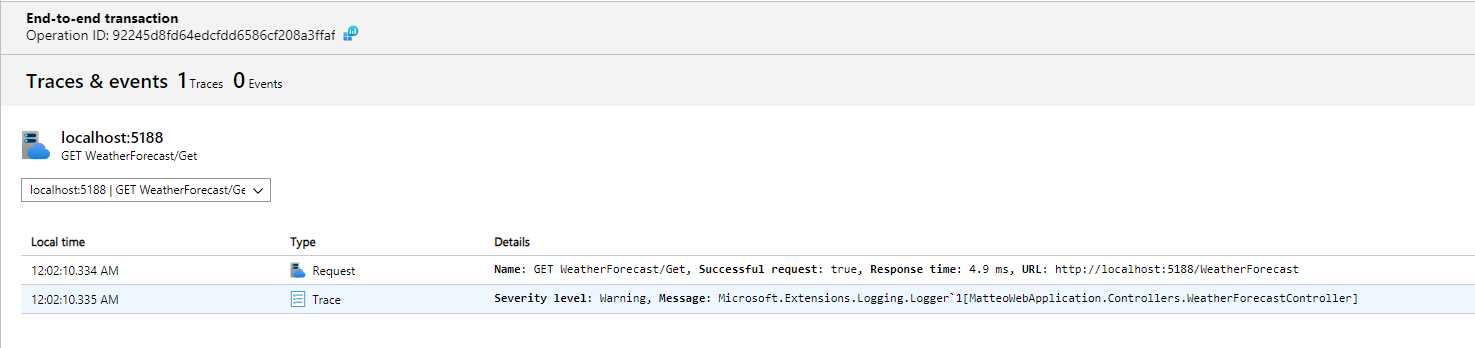

asp-net-core-logging-with-azure-42.jpg asp-net-core-logging-with-azure-43.jpg

Things to note when using AddApplicationInsightsTelemetry

  • The logs are limited to warning ones. On the console we can still se the others as well.
  • Azure Application Insights take time to show the logs. Even if you see some of them, it takes time for all the events to be ingested and correlated.

Using OpenTelemetry

Let’s follow this documentation!

We install

dotnet add package Azure.Monitor.OpenTelemetry.AspNetCore

And now we add:

1builder.Services.AddOpenTelemetry().UseAzureMonitor();

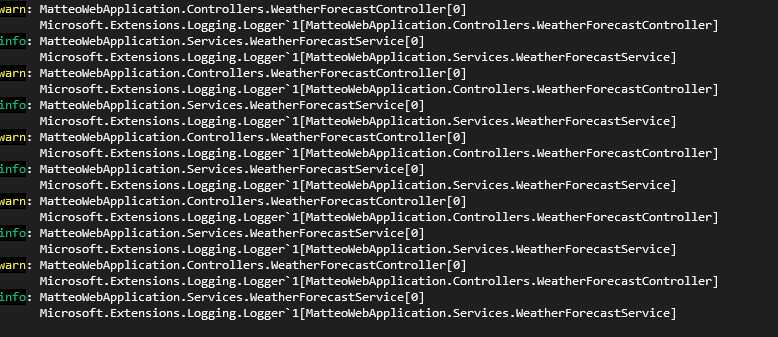

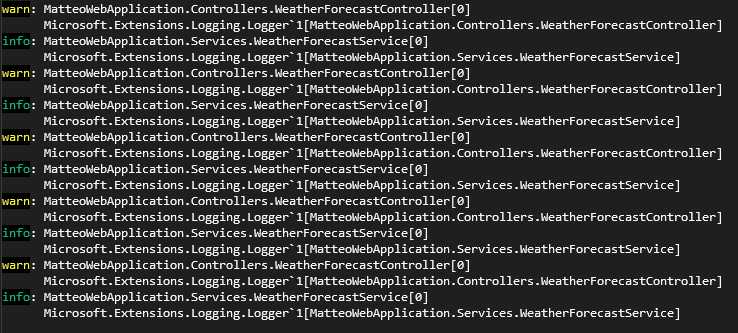

We see the logs in the terminal

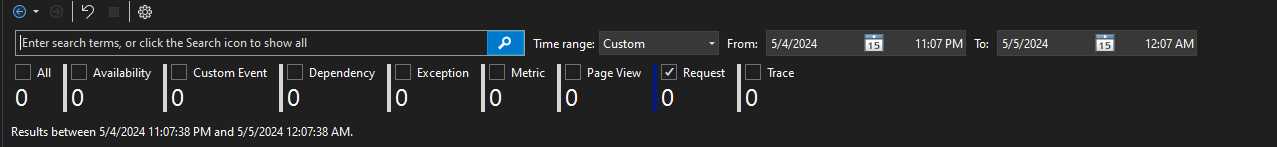

We see nothing on Visual Studio

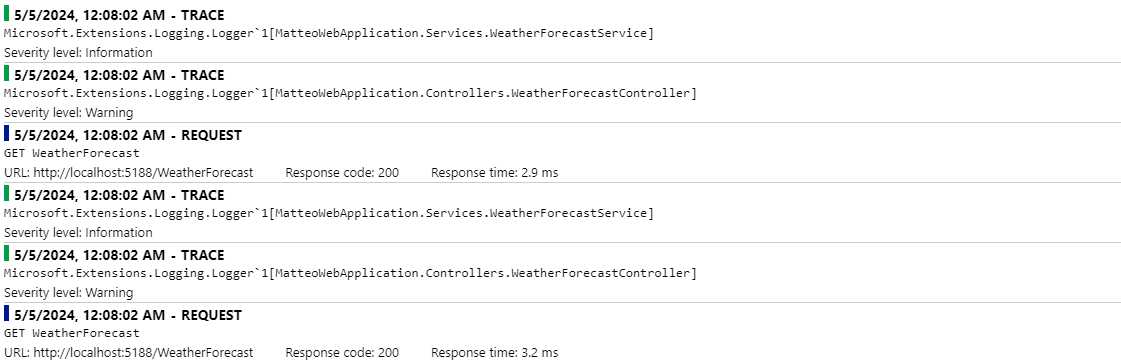

But I can see them on Azure Application Insights


Things to note when using UseAzureMonitor

  • Logs are written by default at Information Level. This means that by default logs are more verbose if using this method.
  • This doesn’t integrate with Visual Studio.

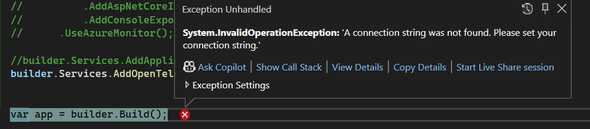

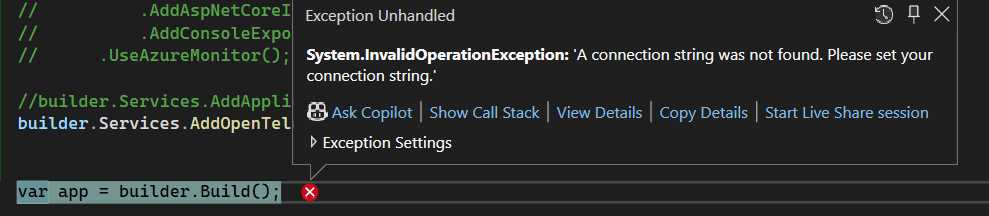

  • If we forgot to add a connection string, the app simply wont start

Let’s enable both of them

What happens if I enable both of them?

Terminal is still fine

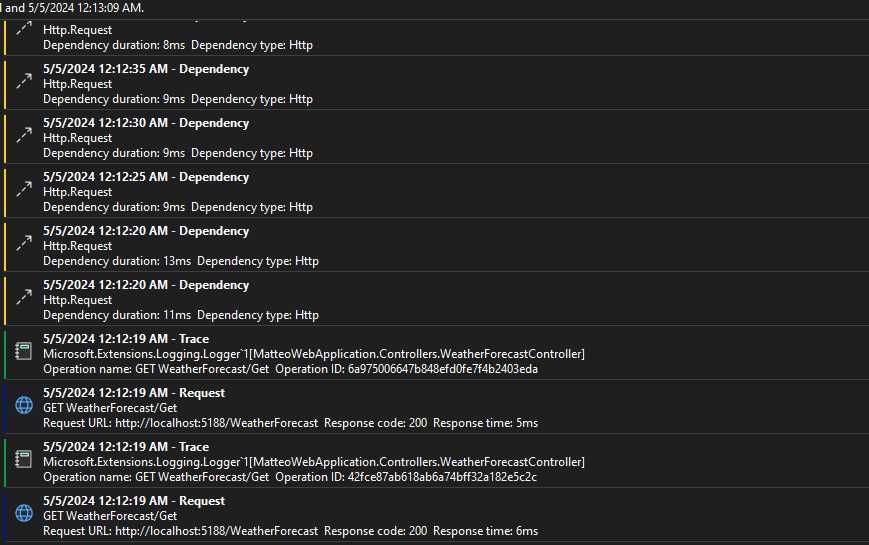

Visual Studio shows some strange dependency, with no info:

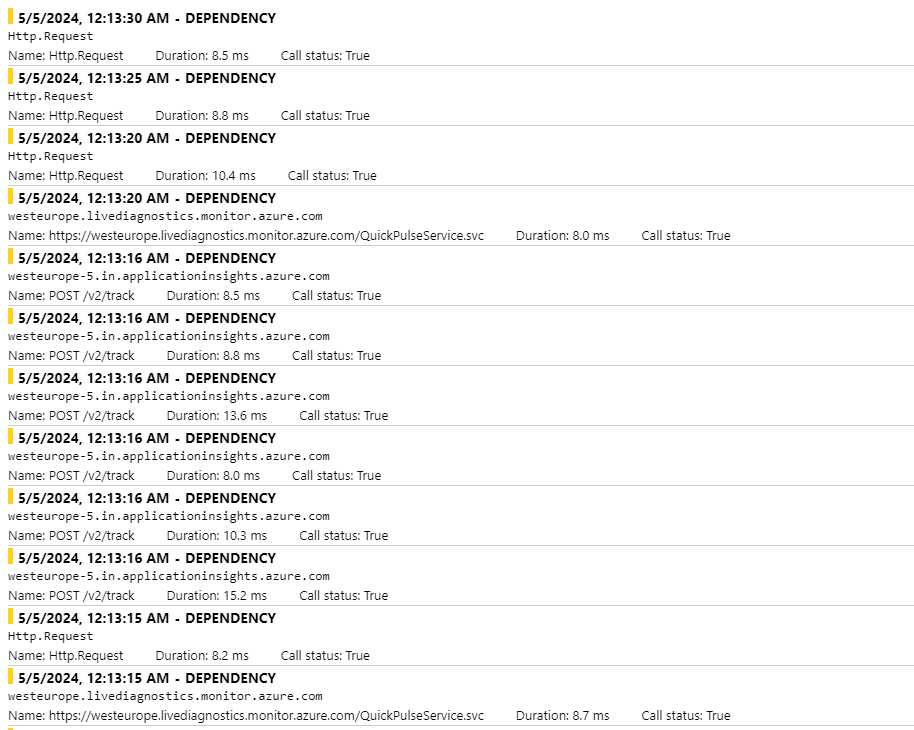

We now see plenty of dependencies on Application Insights!

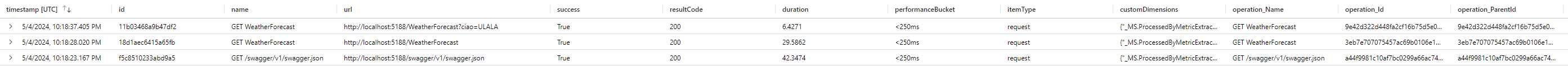

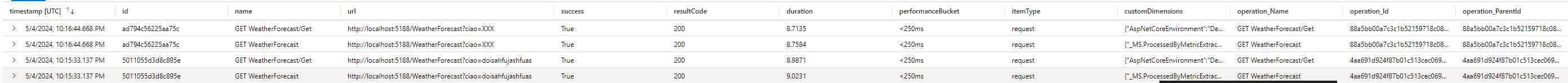

It’s clear that both methods are used at the same time. Going under the Logs section on Application Insights shows that all the requests are logged twice!


In fact, if we remove AddApplicationInsightsTelemetry we end up with non-duplicated requests


Things to note when using both:

  • A conflict happen, so we must be careful using both. For instance, we may have a single request under Application Insights but request are merged together. I wonder how the merging logic is actually implemented.
  • Some stuff that get tracked differ, such as Name and operationId.
